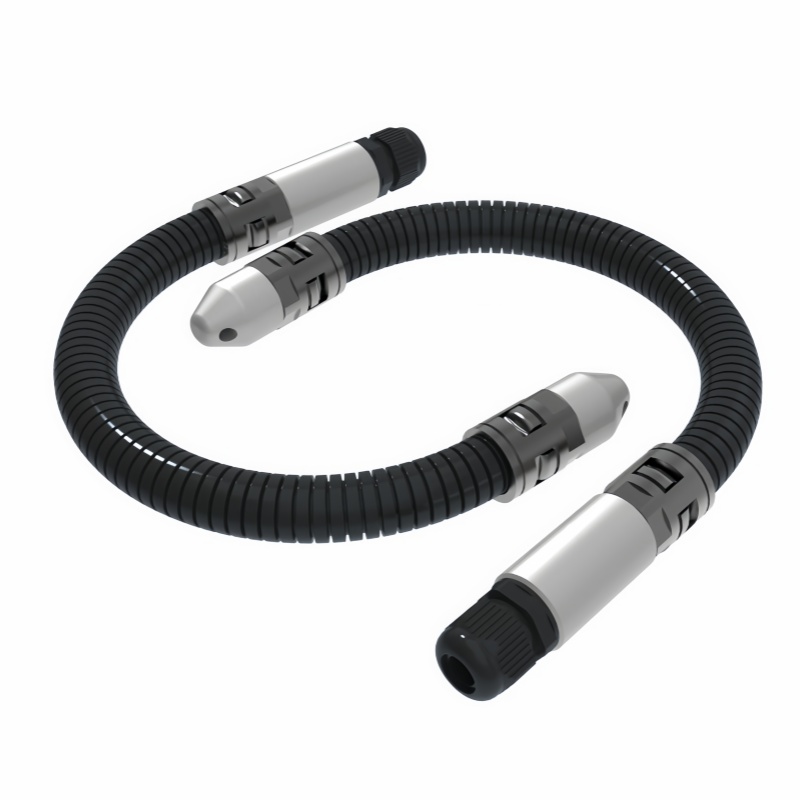

The high-performance protective corrugated tube and pulling system are specially designed for the needs of optical fiber wiring, aiming to solve the problem that optical fiber jumpers are easily damaged in various complex construction environments.PGThe waterproof head ensures the safety and efficiency of the fiber optic patch cord during the construction process.

Features:

Traction connector?: The specially designed traction connector facilitates the insertion of the fiber optic connector into the corrugated tube, effectively protecting the fiber optic cable from damage by external forces. The connector has a secure locking mechanism to ensure that it will not be accidentally disengaged during the traction process.

PGWaterproof head:Tail equipmentPGThe waterproof head prevents dust and moisture from entering the corrugated tube, ensuring the long-term and stable use of the optical fiber connector.

Waterproof design meetsIPGrade requirements, adapt to various harsh environments.

Multi-core fiber optic connector?：Multi-core fiber optic connectors can be inserted into the corrugated tube to meet different wiring requirements and improve management efficiency.

The soft and durable corrugated tube design allows it to easily pass through different paths, such as through walls or other complex construction environments.

Convenient construction?：During the construction process, by pulling the corrugated pipe, wiring can be laid conveniently and quickly, reducing the consumption of manpower and material resources.

Even in harsh construction environments (such as high dust and humidity), the product can still work reliably.

Application scenarios:

High-performance protective bellows and traction systems are widely used in the following scenarios:

Building Wiring?：

Protect optical fiber from abrasion or damage when routing cables inside or outside buildings.

Communication network construction?：

During the construction of communication networks, ensure that fiber optic connections are stable and reliable.

Industrial Applications?：

Securing fiber optic sensor or control lines in factories or other industrial environments.

Conclusion: High-performance protective corrugated tubes and traction systems have become an ideal choice for various optical fiber wiring projects with their excellent protection performance and convenient construction. Whether facing complex and harsh construction environments or high requirements for wiring beauty and efficiency, this product can provide reliable and efficient solutions.

Choose high-performance protective corrugated tubes and traction systems to make your fiber optic cabling project more secure and reliable.

Technical description of bellows traction protection system

1. Core component parameters

PG13.5Waterproof connector

usePA6Nylon material, suitable for6-12mmWire diameter range, built-in double rubber sealing ring structure, protection level up toIP68. Thread specifications compatiblePG/GMetric Standards, Operating Temperature Range-40℃~+110℃。

AD21.2Connectors

Inner diameter17mm, outer diameter21.2mm,matchM20×1.5Thread specifications. Direct plug-in design supports17mmBellows hot-melt sleeve connection, axial tensile strength ≥800N。

Traction head assembly

Contains304Stainless steel reinforcement ring, traction load1500N. Front-end configurationInType guide groove, reduce30%Friction coefficient of pipe penetration.

2. System performance advantages

Index parameter test standard protection levelIP68(Connector)/IP67(system)IEC 60529Compressive strength21.2mmTemperature adaptability-40℃~+120℃UL 94 V0

3. Engineering application cases

Data Center Cabling:AD21.2Connector matingPG13.5Connectors to achieve wall penetration protection for high-density fiber jumpers

Industrial Automation: Traction Head+Aluminum tube combination solution solves the problem of cable wear in the moving section of the equipment

Outdoor communication well:IP68Protection system for wet and dusty environments
